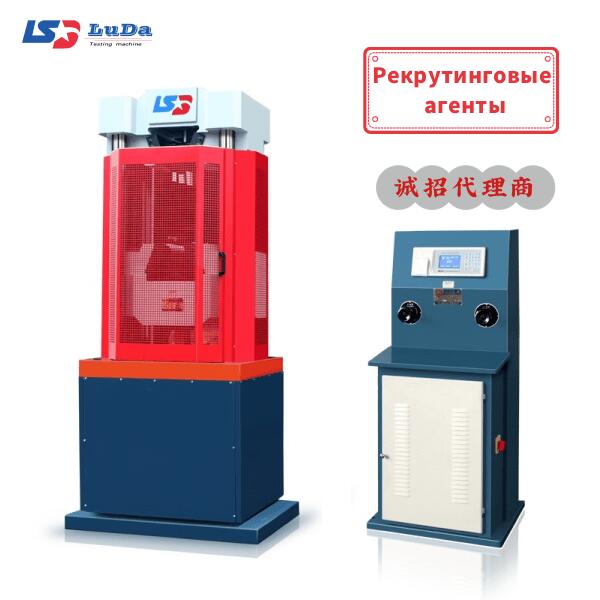

WE-1000B type dial type universal material testing machine
|
Поделитесь страницей в Социальных сетях
|
|
The testing machine is also known as tensile machine, is powered by hydraulic pressure, mainly suitable for doing tensile, compression and other tests on metal materials, equipped with appropriate fixtures, can also be used to conduct tensile, compression, bending and shear test of non-metallic materials to test the mechanical properties of materials, in the materials industry, metallurgy, non-ferrous metallurgy, building materials, machinery industry, transportation, etc. have a wide range of applications. Products comply with the national standard GB/T 228.1-2021 and other standard requirements. Main technical parameters and specifications: | Model Specifications | WE-300B | WE-600B | WE-1000B | | Maximum test force(KN) | 300 | 600 | 1000 | | Range and minimum scale (KN) | 0-120 0.5kN/grid | 0-120 0.5kN/grid | 0-120 0.5kN/grid | | 0-150 1kN/grid | 0-300 1kN/grid | 0-500 1kN/grid | | 0-300 2kN/grid | 0-600 2kN/grid | 0-1000 2kN/grid | | Relative error of value | ±1% | ±1% | ±1% | | Stretching space (mm) | 300 | 600 | 610 | | Compressed Space (mm) | 480 | 500 | 510 | | Flat specimen clamping thickness(mm) | 0～30 | 0～30 | 0～40 | | Round specimen clamping diameter(mm) | 13～40 | 13～40 | 20～60 | | Working piston stroke(mm) | 150 | 170 | 170 | | Upper and lower platen size(mm) | Φ176×Φ176 | Φ176×Φ176 | Φ228×Φ238 | | Distance between two pillars in tension and compression space(mm) | 570 | 570 | 600 | | Maximum lifting speed of moving beam(mm/min) | 240 | 240 | 300 | | Total motor power(Kw) | 1.3 | 1.8 | 1.8 | | Main external dimensions(mm) | 800×520×1850 | 830×540×2060 | 950×630×2220 | | Dimension of force measuring cabinet(mm) | 650×970×1780 | 1050×770×1780 | 1050×770×1780 | | Overall weight(kg) | 2100 | 2200 | 2500 | | Operating noise(dB) | ≤75 | ≤75 | ≤75 |
Цена: 99999 руб.
Вас также могут заинтересовать
本产品适用于金属、非金属及复合材料、构件的拉伸、压缩、弯曲、剪切等力学性能测试，产品符合国家标准GB/T228.1-2021等金属拉伸试验标准要求. 该产品采用下装式油缸，微电脑控制，电液伺服，具有精度高、操作简单、方便、数据存储量大等优点。 特点： 本机采用高精度压力位移传感器，配合高灵敏度数字阀，响应速度快，分辨率高。 液压控制采用一体化油液伺服控制系统，操作方便，稳定可靠。 具有工作状态智能
本产品适用于金属、非金属及复合材料、构件的拉伸、压缩、弯曲、剪切等力学性能测试，产品符合国家标准GB/T228.1-2021等金属拉伸试验标准要求. 该产品采用下装式油缸，微电脑控制，电液伺服，具有精度高、操作简单、方便、数据存储量大等优点。 特点： 测试仪采用四立柱两丝杆框架，“井”式结构，钢性更强，更稳定。 本机采用三道封闭防护罩，有效防护试件碎屑，安全性能高。 由以前的半圆钳口改为三角液压钳
本产品适用于金属、非金属及复合材料、构件的拉伸、压缩、弯曲、剪切等力学性能测试，产品符合国家标准GB/T228.1-2021等金属拉伸试验标准要求. 该产品采用下装式油缸，微电脑控制，电液伺服，具有精度高、操作简单、方便、数据存储量大等优点。 特征： The machine adopts high precision pressure displacement sensor, with high
This product is suitable for metal, non-metal and composite materials, components of tensile, compression, bending, shear and other mechanical properties testing, the product conforms to the national
The tester adopts the design of hydraulic force, computer display, main body and force meter subposition, with easy operation, stable and reliable work, high test accuracy, smooth force and other char
Внимание!
Информация по WE-1000B type dial type universal material testing machine предоставлена компанией-поставщиком zhejiang luda machinery instrument co.,ltd. Для того, чтобы получить дополнительную информацию, узнать актуальную цену или условия постаки, нажмите ссылку «Отправить сообщение».
|
