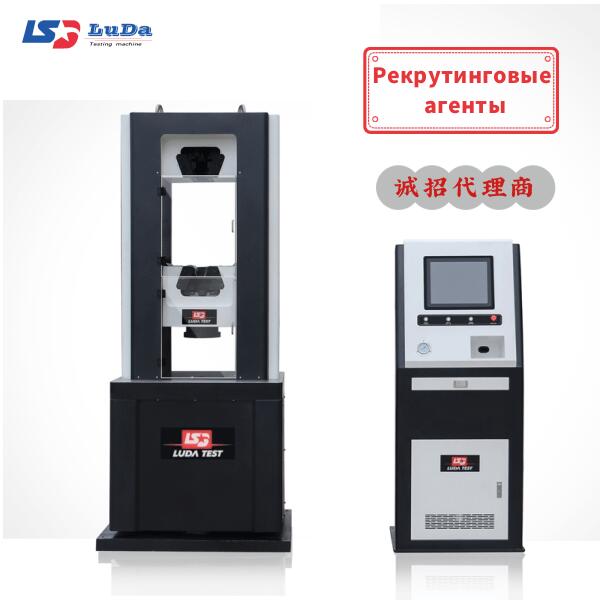

本产品适用于金属、非金属及复合材料、构件的拉伸、压缩、弯曲、剪切等力学性能测试，产品符合国家标准GB/T228.1-2021等金属拉伸试验标准要求. 该产品采用下装式油缸，微电脑控制，电液伺服，具有精度高、操作简单、方便、数据存储量大等优点。
特征：
The machine adopts high precision pressure displacement sensor, with high sensitive digital valve, fast response speed, high resolution.
Hydraulic control adopts integrated oil servo control system, easy to operate, stable and reliable.
With intelligent prompting working state, servo automatic compensation, positioning, pressure-holding and other functions.
The test space can be adjusted at will by moving the beam, and different test pieces can be tested
The range can be automatically switched, and the range is automatically selected according to the load bearing size of the sample.
With maximum load peak hold function, overload protection and position over-limit protection, safer to use.
with automatic data storage and automatic calculation and printing of all test results.
Main technical parameters and specifications:
| Model Specifications | WAW-100S | WAW-300S | WAW-600S | WAW-1000S | WAW-1500S |
| Maximum test force(KN) | 100 | 300 | 600 | 1000 | 1500 |
| Effective measurement range | 5%～100% | 5%～100% | 5%～100% | 5%～100% | 5%～100% |
| Accuracy of load indication value | Level 0.5 | Level 0.5 | Level 0.5 | Level 0.5 | Level 0.5 |
| Stretching space (mm) | 480 | 540 | 690 | 690 | 850 |
| Compressed Space (mm) | 480 | 480 | 620 | 620 | 750 |
| Flat specimen clamping thickness(mm) | 0-15 | 0-15 | 0-15 | 0-40 | 0-40 |
| Round specimen clamping diameter(mm) | 10-20 | 10-20、20-32 | 13-26、26-40 | 20-40、40-60 | 14-45 |
| Working piston stroke(mm) | 180 | 180 | 180 | 180 | 200 |
| Upper pressure plate size(mm) | Φ180 | Φ180 | Φ180 | Φ220 | Φ220 |
| Lower pressure plate size(mm) | Φ180 | Φ180 | Φ180 | Φ230 | Φ230 |
| Distance between the two columns of the pulling and pressing space(mm) | 380 | 400 | 400 | 450 | 450 |
| Maximum rise speed of table plate(mm/min) | 100 | 100 | 100 | 100 | 100 |
| Maximum lifting speed of moving beam(mm/min) | 240 | 240 | 240 | 240 | 240 |
| Total motor power(Kw) | 2 | 2.85 | 2.85 | 2.85 | 2.85 |
| Supply Voltage | AC380V±10%,50Hz | AC380V±10%,50Hz | AC380V±10%,50Hz | AC380V±10%,50Hz | AC380V±10%,50Hz |
| Main external dimensions(mm) | 730×600×1750 | 730×600×1840 | 890×600×2070 | 945×630×2100 | 1130×740×2470 |
| Dimension of force measuring cabinet(mm) | 700×520×1630 | 700×520×1630 | 700×520×1630 | 700×520×1630 | 700×520×1630 |
| Overall weight(kg) | 1500 | 1700 | 2400 | 2800 | 3500 |
| Operating noise(dB) | ≤60 | ≤60 | ≤60 | ≤60 | ≤70 |
