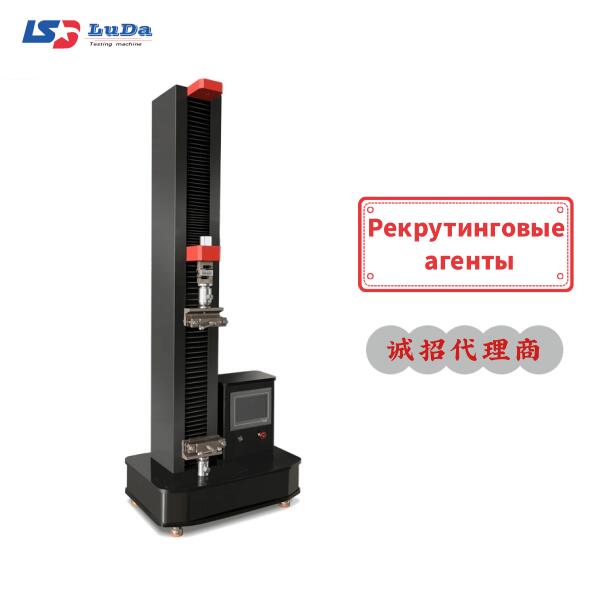

WDW-S10 type electronic universal material testing machine
|
Поделитесь страницей в Социальных сетях
|
|
本产品适用于各种金属、非金属及复合材料的力学性能测试分析，可获得最大试验力值、断裂力值、屈服强度、上下屈服强度、抗拉强度、试验材料的抗压强度、断裂伸长率、拉伸弹性模量和弯曲弹性模量。 Main technical parameters and specifications: | Model | WDW-S10 | | Control mode | screen control | | Maximum load (KN) | 10 | | Precision grade | 1 grade | | Test force measurement range (FS) | the whole process is not graded | | Relative error of the test force value | ±1% or less | | Test force resolution | 1/±300000 of the test force | | Displacement resolution (um) | 0.025 | | Relative error of displacement value | ±1% of the indicated value | | Force control rate adjustment range (FS/S) | 0.01~5% | | Relative error of force control rate | within ±1% of the set value | | Deformation resolving power | 1/±300000 of the maximum deformation | | Deformation measurement range (FS) | 0.2%～100% | | Relative error of deformation value | ±1% of the displayed value | | Deformation rate adjustment range(FS/S) | 0.02～5% | | Cross-beam speed adjustment range (mm/min) | 0.01～500 | | Effective tensile space (mm) | 800 | | Effective test width (mm) | 100 | | Power supply | 220V±10%,0.4kW |
Цена: 99999 руб.
