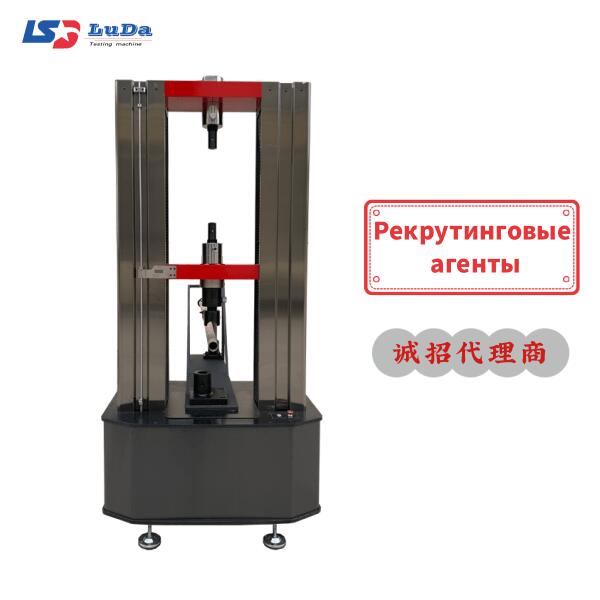

WDW-200G type steel pipe scaffolding fasteners mechanical performance testing machine
|
Поделитесь страницей в Социальных сетях
|
|
本产品主要用于脚手架扣件、钢管扣件、铸钢扣件、混凝土枕形扣件、钢轨扣件等各类扣件做防滑、抗变形、拉伸、压缩等力学性能试验。适用于质量监督、教学科研、钢铁冶金、汽车、建筑建材等试验领域。 Main technical parameters and specifications: Maximum test force (KN)v | 200 | Accuracy grade | 1 grade (can be customized to 0.5 grade on request) | Test force measurement range FS | 1% to 100% of the whole process without sub-grade | Relative error of the test force value | ±1% or less | Test force resolution | 1/±300000 of the maximum test force | Unique resolution um | 0.025 | Relative error of displacement value | ±0.5% of the indicated value | Force control rate adjustment range FS/S | 0.01~5% | Relative error of force control rate | within ±1% of the set value | Deformation resolution | 1/±300000 of the maximum deformation | Deformation measurement range FS | 0.2%~100% | Relative error of deformation value | within ±0.5% of the displayed value | Deformation rate adjustment range FS/S | 0.02%~5% | Cross-beam speed adjustment range mm/min | 0.01~200 | Effective crushing space mm | 800 | Effective test width mm | 400 | Power supply | 220V±10%, 2kW | Host size mm | 1000×800×2200 | Host weight kg | 800 |
