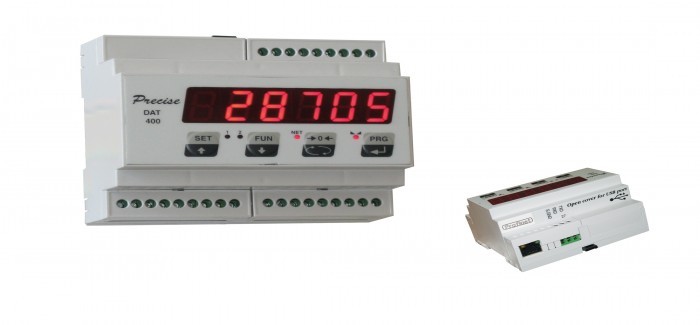

Весовой модуль Pavone Sistemi S.r.l. DAT 400\P Profibus

Высопроизводительный весовой контроллер от компании Pavone Sistemi S.r.l.

USB port, output RS232 or RS422/RS485, ASCII Protocols or MODBUS RTU
Upload and download function for programming with 1006 TESTER
Directly connectable to PROFIBUS Fieldbus or DEVICENET with optional internal board. Now available also with PROFINET
Up to 32 addressable units, connectable to a PC or PLC
10 points linearization
Calibration done using certificates of transducers
Configuration and calibration from the front panel or PC via the USB serial port, RS232/RS485 with the program INNOVATION™ (MS Windows)
Version bipolar ± 10V

Технические характеристики DAT 400:

Trasducer input voltage:5 V (max 6 load cells 350 Ohm)

Measuring range:-0.5 &spanide; +3.5 mV/V (-3.9 &spanide; +3.9 mV/V optional)

Input sensitivity:0.02 microV/spanision
Linearity:< 0.01% FS
Gain, drift:< 0.001% FS/ °C
Display:6 digit, red LED (7 segments), h 14 mm
LED status:4 red
A/D Converter:24 bit
Resolution:> 16.000.000 counts
Visible resolution:60.000 spanisions displayable on net weight
Divisions value (adjustable):x1, x2, x5
Decimal:0.0 ; 0.00 ; 0.000
Filter:0.1&spanide;25 Hz adjustable
Keyboard:4 tactile feedback buttons
Tool voltage:24 Vcc ±15% - power 5 W
Temperature range:-10 &spanide; +50 °C
Storage Temperature:-20/+70°C
Logic output:2 relays (clean contact) MAX 24 Vcc/100 mA cad.
Logic input:2 optoisolated 24 Vcc PNP (External voltage)
Serial door:USB, RS232C o RS422/RS485 with ASCII or Modbus RTU protocols
Transmission distance:15m (RS232C), 1000m (RS422 e RS485)
FIELDBUS protocol: PROFIBUS
Others fieldbus comunication:CANopen, Modbus-Plus and other
Peak Hold function:only for dynamics measures
Baud rate:2400, 9600, 19200, 38400, 115200 adjustable
Analog output optional:optoisolated 16 Bit Tension: 0&spanide;5/10 V (R min10 K Ohm), Current: 0/4&spanide;20 mA (R max 300 Ohm)
Regulatory compliance:EN61326-1, EN55011 and EN55014 for EMC; EN61010-1 for electrical security
Electrical connection:Screw terminals 5 mm
Dimensions and weight:106 x 90 x 58 mm (L x H x P); 250 g
